Heavy Duty 4 in 1 Ball Joint Press U Joint Removal Tool Kit w 4x4 Drive Adapters

Ball Joint Press Set Ball Joint Tool / Bushing Removal Tool with 4WD Adapter to effortlessly remove press fit parts including ball joints,
U-joints, brake anchor pins, and more on most 2-wheel drive (2WD) and 4-wheel drive (4WD) vehicles without removing the control arm from the vehicle.

Fit most  domestic and imported 2-wheel drive (2WD) and 4-wheel drive (4WD) cars and light pickup trucks that have press-fit type ball joints,

include 4-wheel drive (4WD) adapter that allows service for 1967 thru current 1/2 and 3/4 ton 4WD vehicles having the Dana 30 or 44 front axle (found on Ford, GM, Dodge, IHC vehicles).

This tool kit is designed for use on all cars and light trucks that have press-fit type ball joints without the need to remove the control arm from the vehicle

Description:

100% brand new, Never been tried or installed
Material: Advanced carbon steel / PVC box
Brake Anchor Pin Removal and Installation

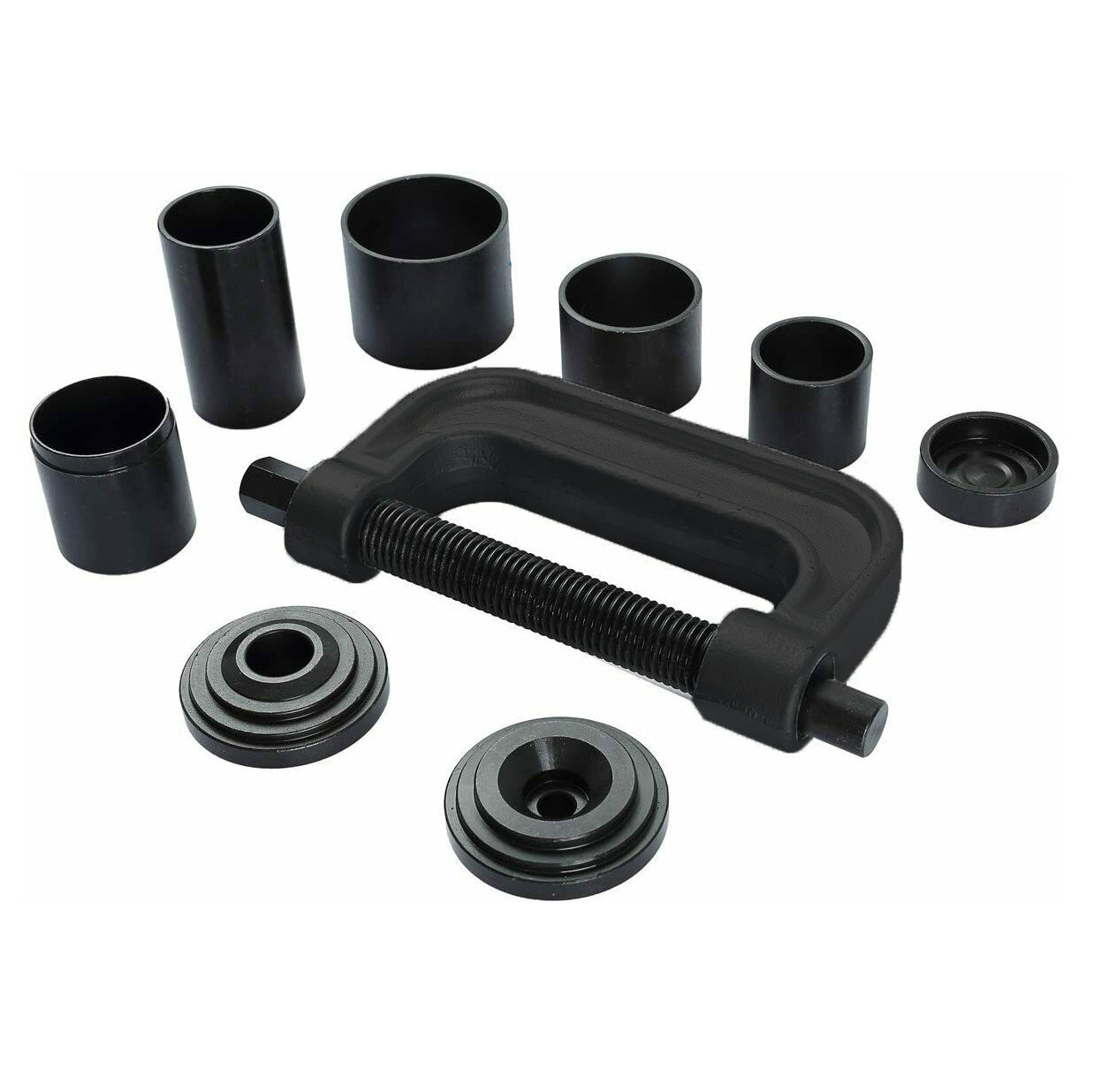

4pc Ball Joint Service Kit with 4 Wheel Drive Adaptors
This tool kit is designed for use on all cars and light trucks that have press-fit type ball joints without the need to remove the control arm from the vehicle
Professional installation is highly recommended
Installation Instruction is NOT Included

A: Removal Adapter (1.148" L x 1/2" I.D. x 3" O.D.)

B: Screw

C: Installing Cup (3.676" L x 1-3/4" I.D. x 2" O.D.)

D: Installation Adapter (1.122" L x 0.941" I.D. x 3" O.D.)

E: Forcing-screw Press (Inner Length: 6.22"/158mm)

F: Receiving Cup (2-1/2" L x 2" I.D. x 2-1/4" O.D.)

G: Receiving Tube (1-3/4" L x 1-3/4" I.D. x 2" O.D.)

H: Receiving Tube (1-3/4" L x 2-1/4" I.D. x 2-1/2" O.D.)

I: Receiving Tube (2-1/4" L x 2.723" I.D. x 3" O.D.)

J: Install Cup Adapter (0.845" L x 1.879" I.D. x 2-1/4" O.D.)
