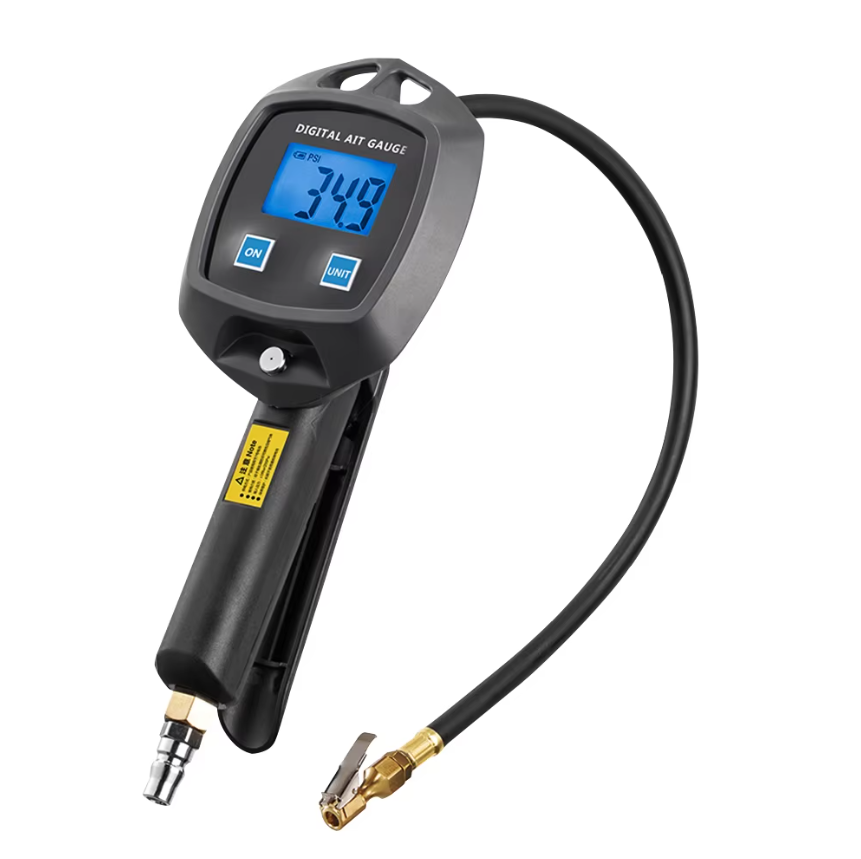

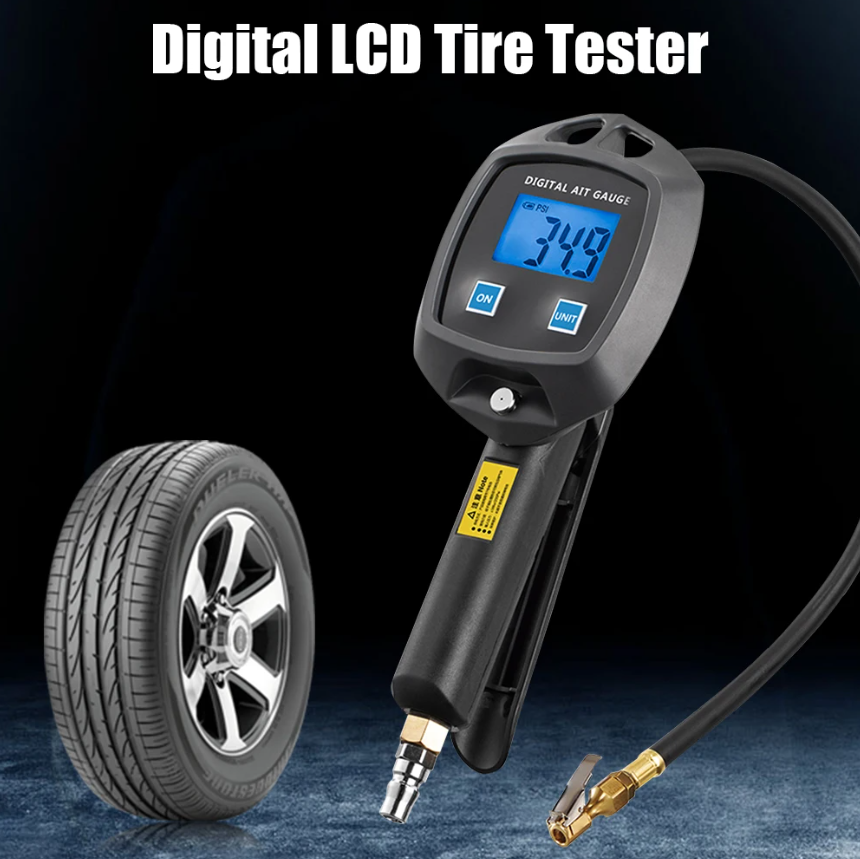

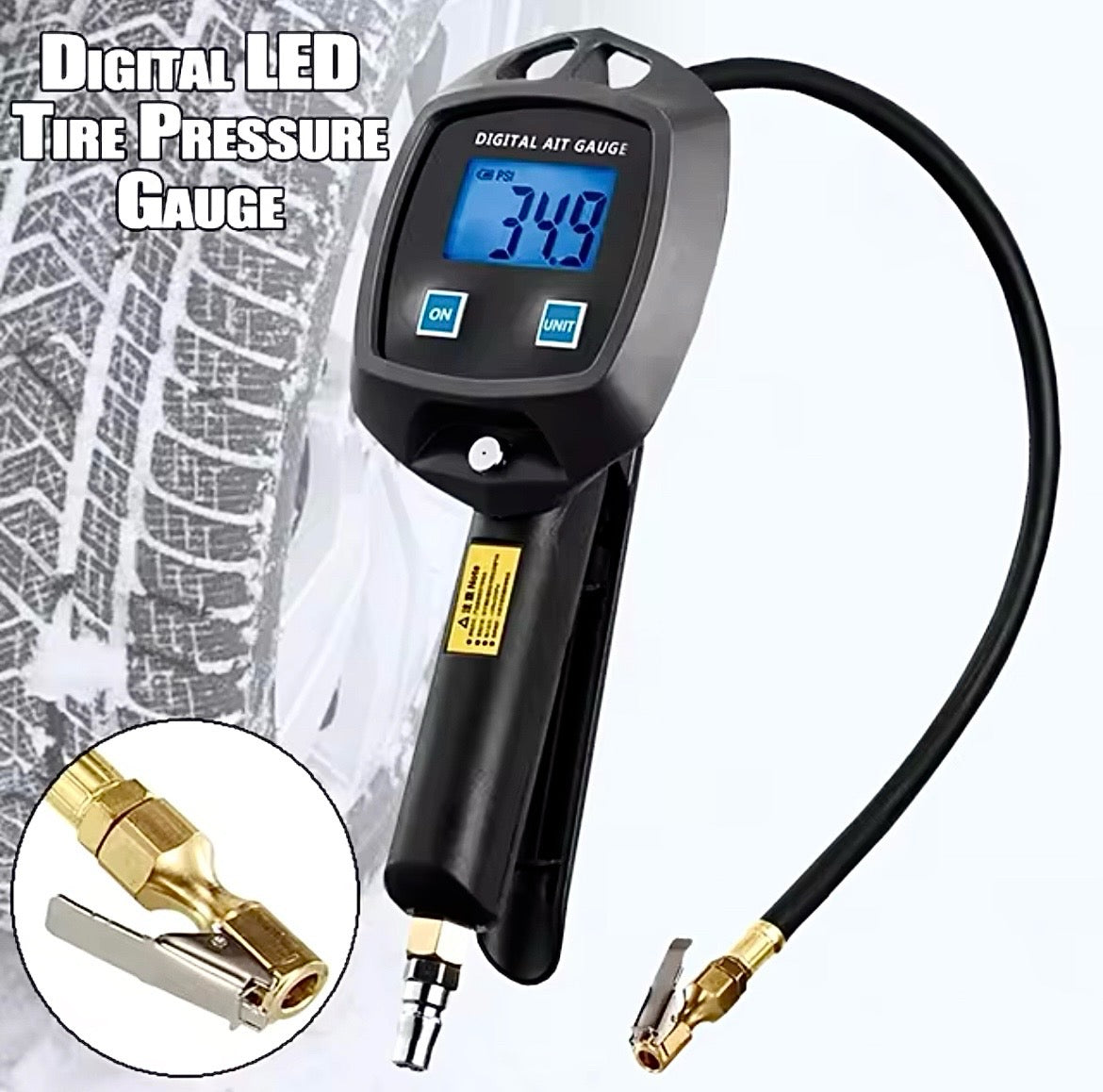

LED Display Car Tire Pressure Gauge

Digital LED Display Car Tire Pressure Gauge Auto Accessories High-precision Monitoring Inflation Gun Universal Tire Manometro

Description:

Application: Car, Van, Bus, Truck, Motorcycle, Bicycle, etc.

Display: LCD

Backlight: Yes

Unit: Psi, Bar, Kpa, Kg/cm2

Function: Inflation, Deflation, Pressure Gauge, Pressure Monitoring

Power Supply: 2x 7 AAA Batteries (included)

Working Temperature: -20°C~65°C

Pressure Range: 0-255Psi/0-1Bar/0-18Kg/cm2/0-1800KPA

Precision: ±0.3Psi/0.02Bar (Temperature in 20-30℃)

Resolution Ratio: 0.1Psi/0.01Bar/0.01Kg/cm2/1Kpa

Meterial: nylon,rubber,metal

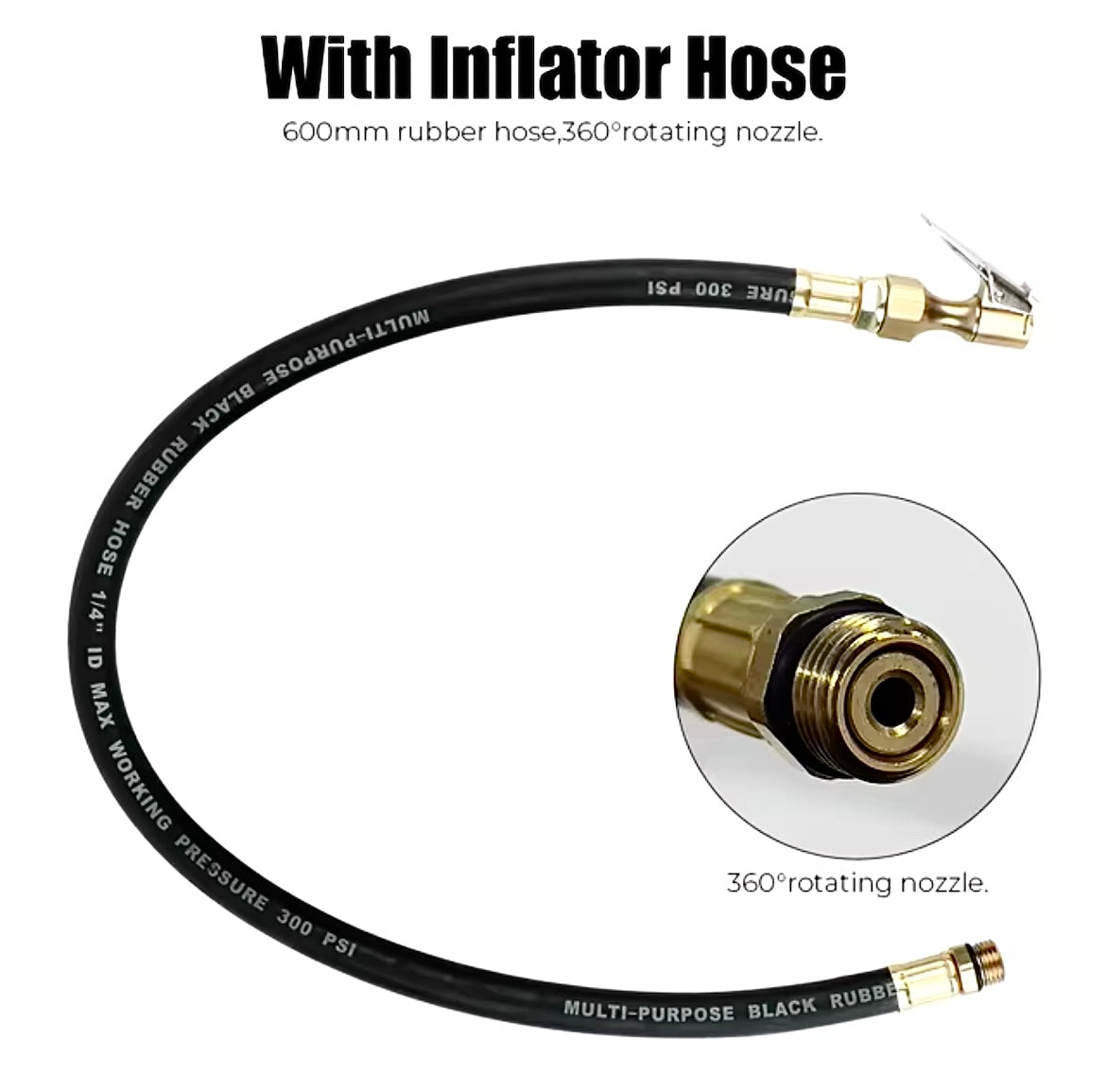

Hose Length: about 600mm (without inflator)

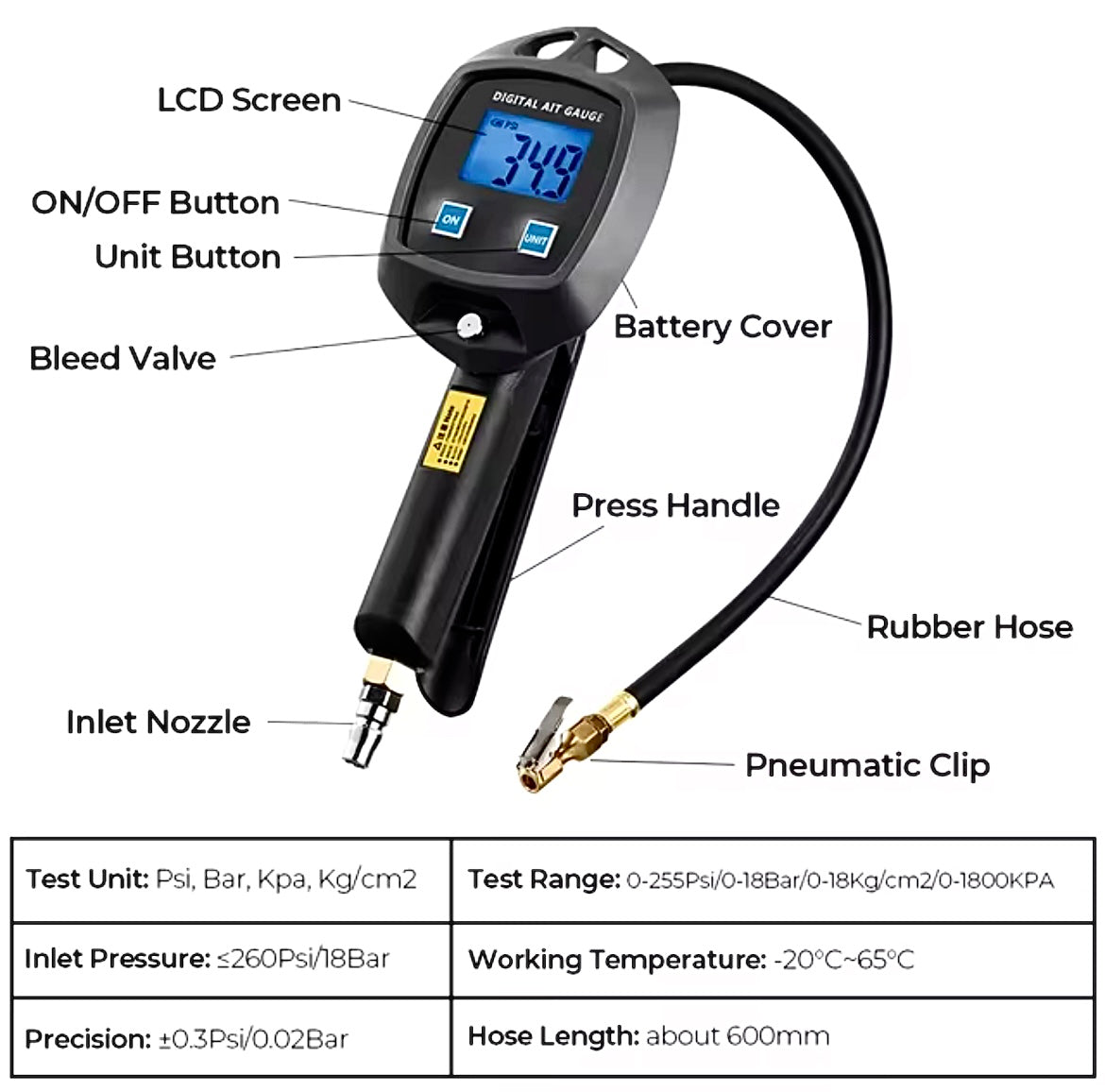

Operation:

1. Air inlet (G) of tire pressure gauge is connected to air source such as air compressor. (Only pressure measured if without air source),

2. Twist the nozzle cap of the tire valve.

3. Insert the inflatable clip nozzle (H) vertically into the tire valve nozzle and ensure that there is no air leakage.

4. Press the left button (C) to start the machine, and press the right button (D) to switch the unit to BAR after the machine is started. After the adjustment, it will be automatically saved for the next use. (When the tire is connected, it will automatically turn on when the pressure is detected, showing the actual tire pressure.)

5. When the tire pressure is too low, press the handle (F) to inflate, and when it is too high, press the exhaust valve (E) to deflate.

6. When the screen shows the air pressure value inflated needed done, remove inflatable clip nozzle (H). After 30 seconds, do not use automatic shutdown or long press the left button to shut down.

Note:

1. The product can not be directly inflated, which needs to be connected to air compressor and other air source equipment.

2. The product is powered by 2x 7 AAA batteries.

3. To install or replace the battery, open the soft adhesive sheath to see the battery compartment.

4. If the two keys cannot be pressed at the same time, the calibration mode will be entered. Remove the battery and reinstall it.

5. The backlight will automatically turn off within 15 seconds. To turn it on again, press the on button.

6. Convert by unit and select the desired unit. After the selected unit is shut down, it will be saved as the default unit.

Package Included:

1 x Tyre Pressure Gauge

1 x Rubber Hose

1 x Manual
