Wire Crimp Tool

Wire Crimp Tool

Regular price £13.99 GBP
Regular price Sale price £13.99 GBP
Sale Sold out

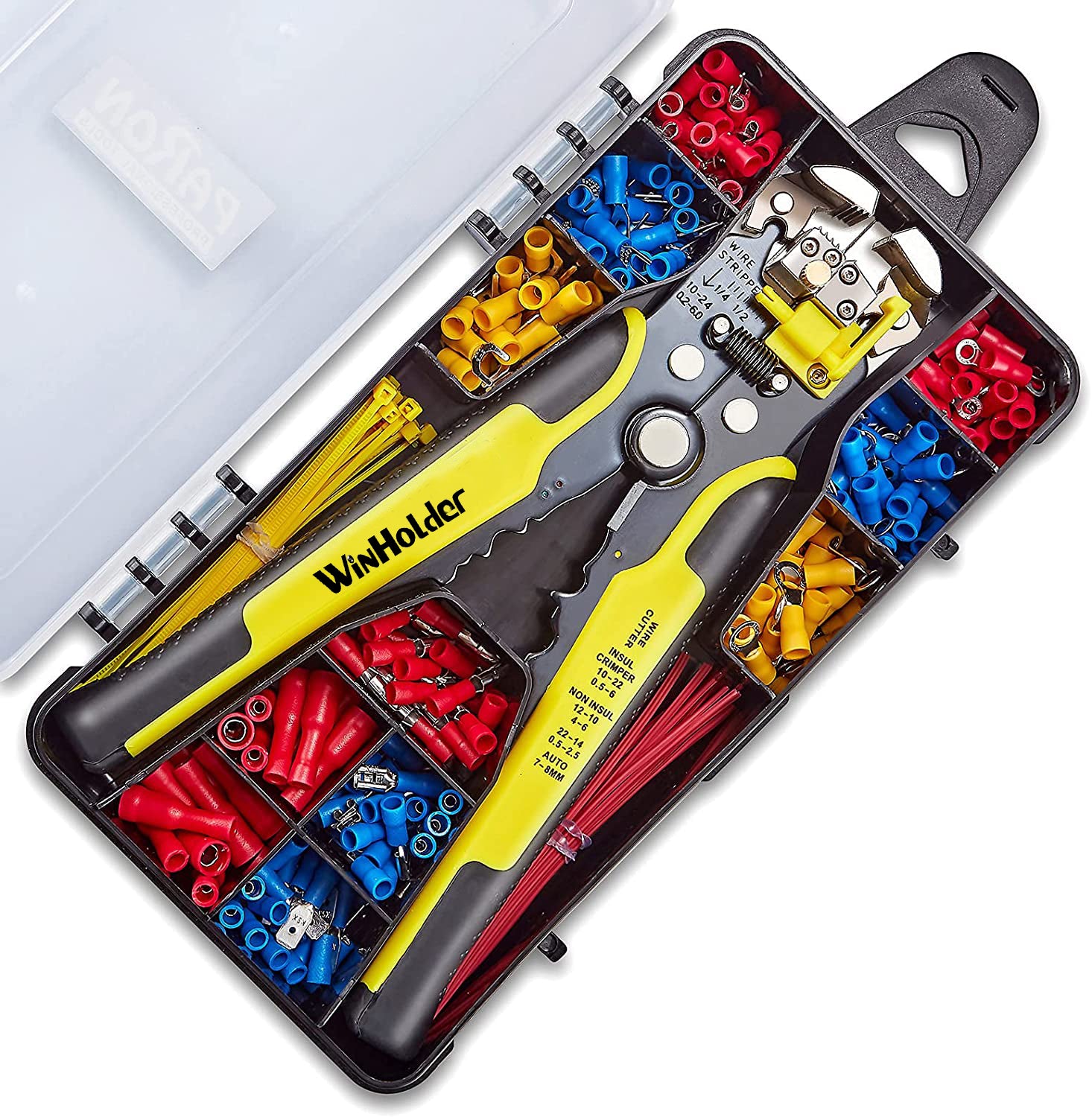

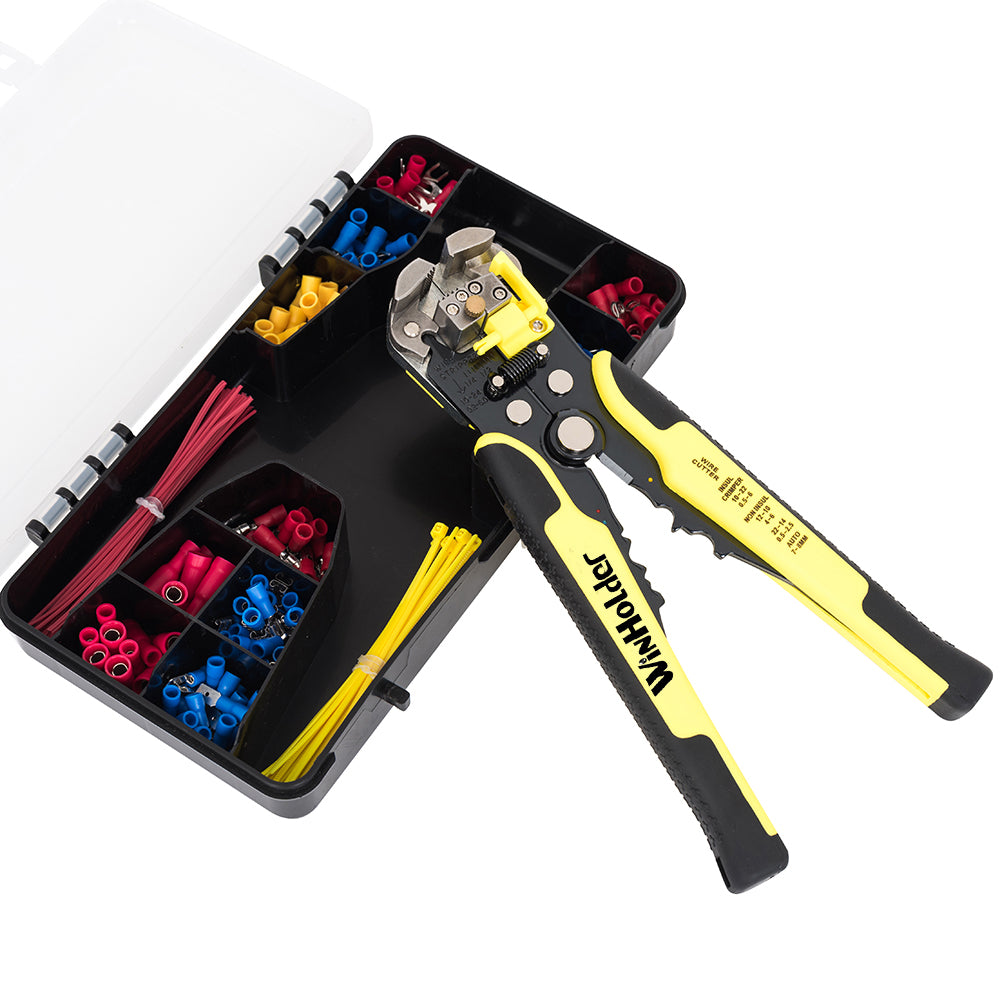

Multifunctional Automatic Wire Stripping Pliers

14-20 AWG Self-adjusting Wire Stripper Pliers

 for Stripping Cutting Crimping Wire Crimper Kit +

with 230pcs Crimp Connectors terminals 14-20 AWG

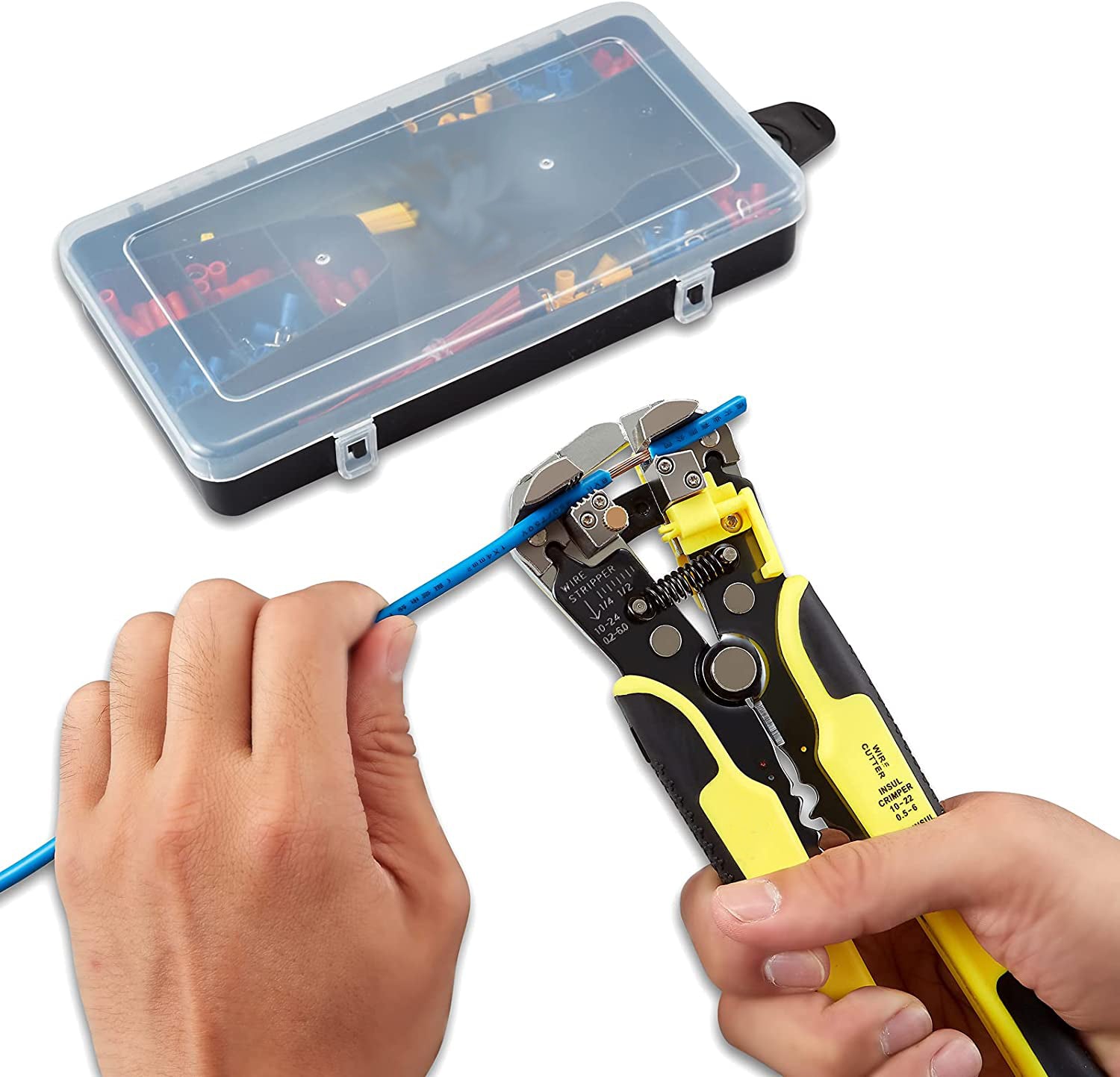

  • 1. Self-adjusting 3 in 1 wire stripper kit: Efficiently and conveniently use this wire stripping pliers for wire stripping, cutting and crimping. Its stripping and cutting range is from 14-20 AWG (0.2-6.0mm²) . The crimping range for insulated and non-insulated terminals is from 14-20 AWG . For crimping ignition terminals is from 7-8mm².

  • 2. Flexible design: Its adjustable knob can adjust the stripping pressure according to different gauge of wires. Turn it clockwise while sliding. Turn it anticlockwise while damaging the core. The built-in adjustable stopper can adjust the stripping length of wires.

  • 3. Superior quality: The automatic wire stripper tool is made of S50C steel, with heat treatment and black oxide. That make it strong and durable enough for industrial and daily use. The spring structure in the pliers is strong enough to sustain 13000 times of use. The non-slip rubber (TPR) handles provide maximum leverage, which enhances comfort and reduces hand fatigue.

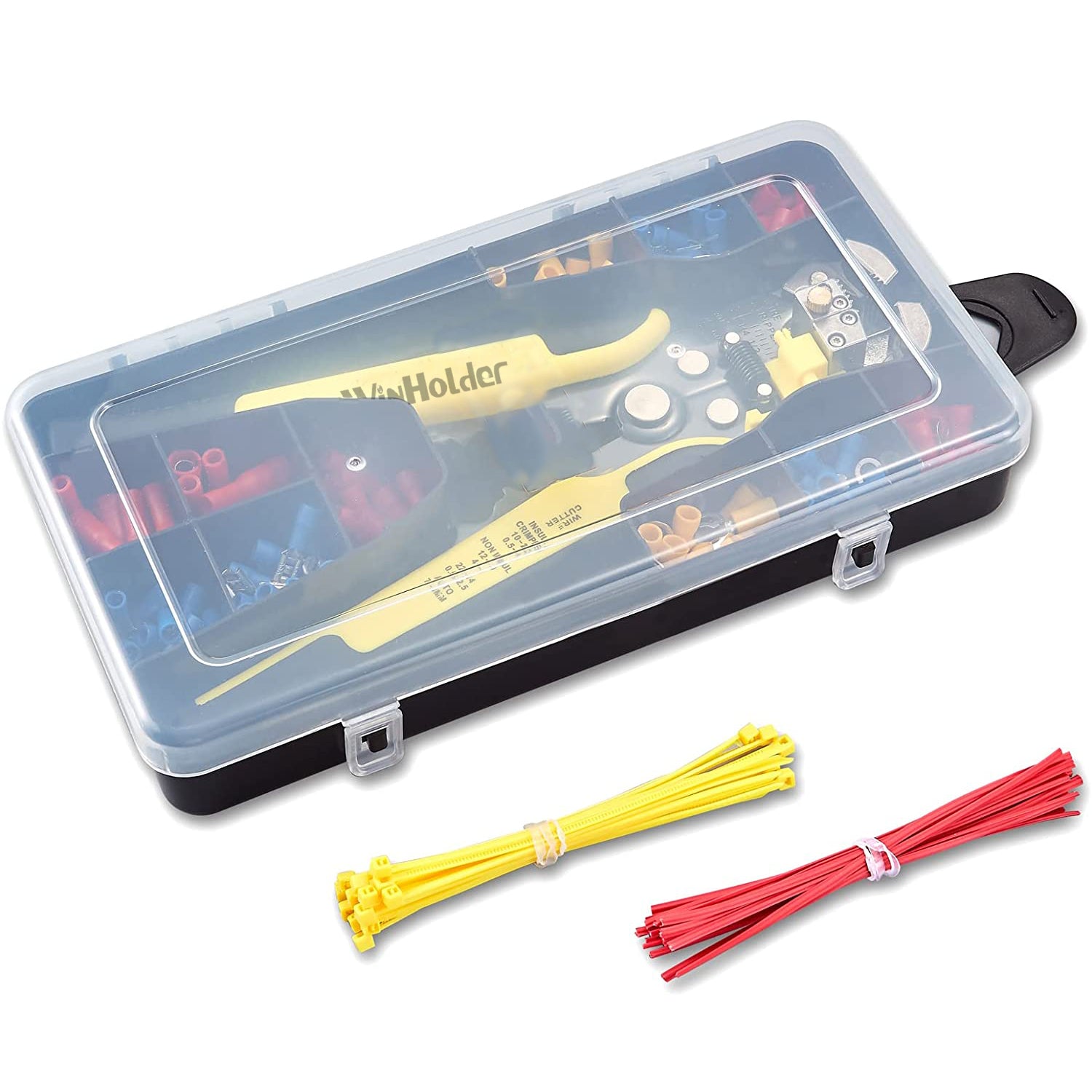

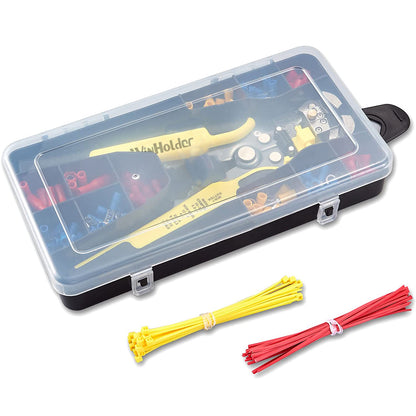

  • 4. Value added pack: The wire stripping tool comes with 230pcs Crimp Connectors terminals and 40pcs cable zip ties, which packed in the superior plastic box. Use it for stripping and cutting copper wire, aluminum wire, sheathed core wire, cable, and insulated terminal electrical crimping

  • 5. Our service: If you have any questions for pre-sales and after-sales, please feel free to contact us. We would try our best to solve it.


Specifications:
Wire Stripper Material: Steel
Terminal Material: Nylon + Copper
Wire Stripper Color: Yellow
Stripping Range: AWG 14-20

Crimping Range:
Insulated: AWG 14-20
Non-insulated: AWG 14-20
Ignition: 7-8mm
Item Size: 217*127*37mm / 8.54*5.0*1.45in
Item Weight: 567.1g / 20.0oz
Package Size: 238*137*45mm / 9.37*5.39*1.77in
Package Weight: 615g / 21.69oz

Note:
Wire stripper set only, other accessories in the pictures are not included.
Due to lighting or other reasons, the picture and material object may slightly differ.
Due to manual measurement, there may be deviation, please in kind prevail.

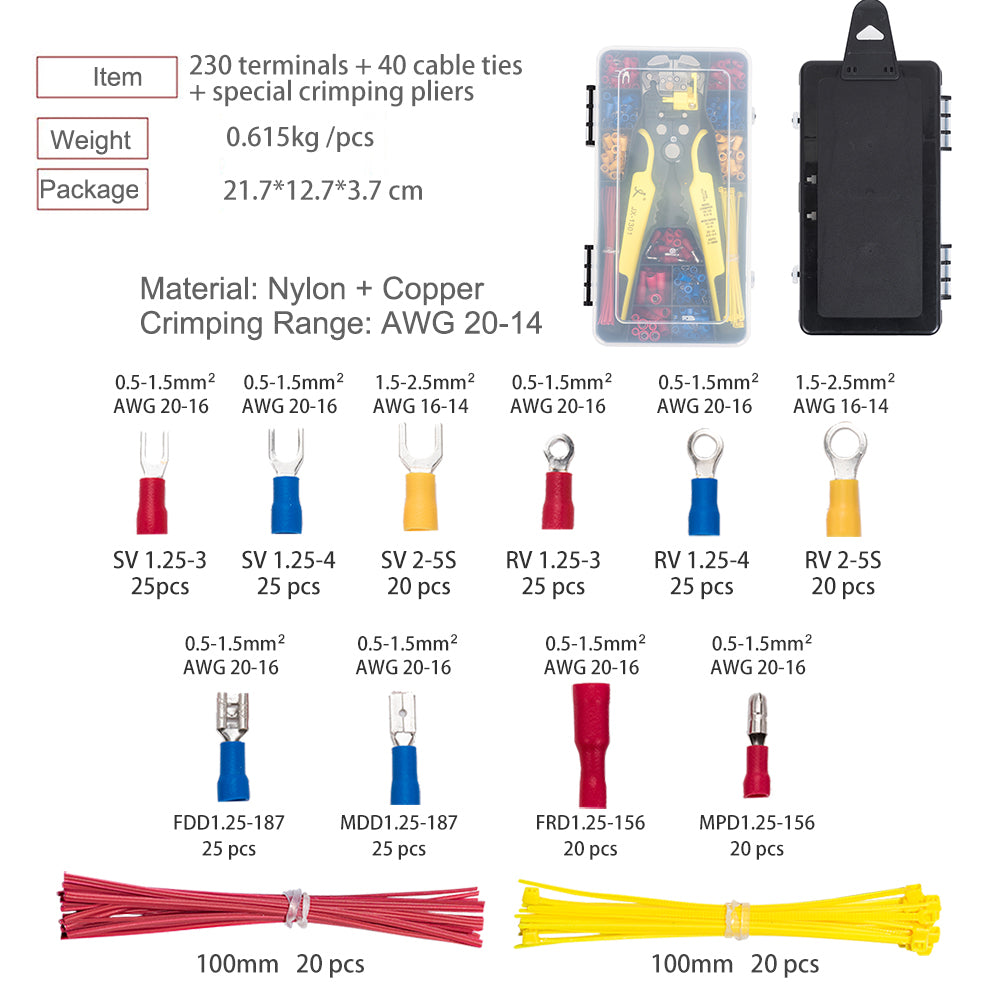

Packing List:
1 * Wire Stripper
25 * SV 1.25-3 Terminal
25 * SV 1.25-4 Terminal
20 * SV 2-5S Terminal
25 * RV 1.25-3 Terminal
25 * RV 1.25-4 Terminal
20 * RV 2-5S Terminal
25 * FDD 1.25-187 Terminal
25 * MDD 1.25-187 Terminal
20 * FRD     1.25-156 Terminal
20 * MPD 1.25-156 Terminal
40 * 100mm Cable Tie
